Adsorption dehumidifiers CTR 10000

Highly efficient mobile adsorption dehumidifier on a trailer

Adsorption dehumidifiers CTR 10000

Highly efficient mobile adsorption dehumidifier for large and demanding work.

On a trailer, this CTR drier is always ready for rapid deployment wherever the catastrophe has occurred.

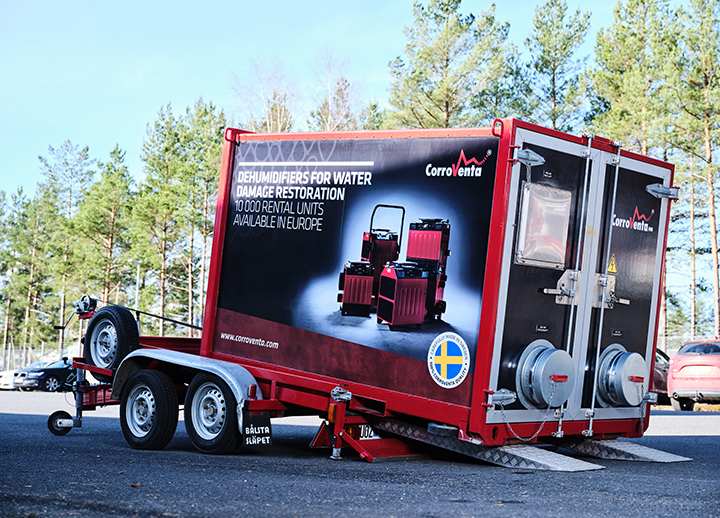

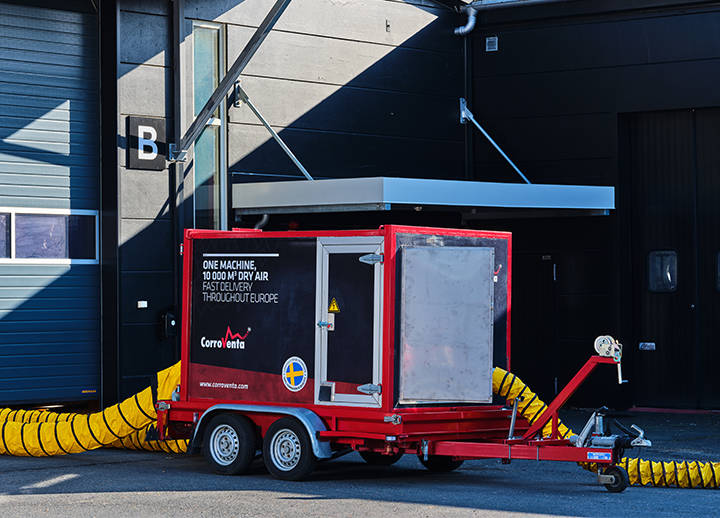

CTR-10000-1
CTR-10000-2
CTR-10000-3
CTR-10000-4
CTR-10000-1
CTR-10000-2
CTR-10000-3
CTR-10000-4

Some advantages of CTR 10000:

  • Ideal for large, demanding drying jobs and building dehumidification.
  • 10.,000 m3/h dry air, capacity 875 l/day.
  • The drier can be lifted by a forklift truck or crane.

Technical data

Power supply 3 ~ 400 V 63 A
Power consumption 36,2 kW
Dry air - 1 fan 5000 m3/h 2,2 kW
Dry air - 2 fans 10000 m3/h 4,4 kW
Reg-air 1800 m3/h 0,75 kW
Reg-power - one heater 15,5 kW
Reg-power - two heaters 31,0 kW
Capacity +20°C, 80% RF 875 l/day
Weight 1080 kg
Weight with trailer 1560 kg
Size (L x W x H) 300 x 170 x 180 cm
Size with trailer (L x W x H) 485 x 233 x 220 cm
Article number 05000

 Accessories

Additional items Similiar products
Hygrostat

Humidistat HR1-5

Humidistat HR1-5 fits all Corroventa’s normal dryers. Used during drying when the conditions are considered sensitive or particularly critical.

A50-TD2_web

Adsorption dehumidifiers A50 TD2

Highly efficient mobile adsorption dehumidifier for large and demanding tasks.
