Corroventa products

SuperVision® 2.0 Plus kit

For remote control and monitoring of both digital and analogue machines, equipment for measuring in wood, and sensors for airflow and dynamic control.

SuperVision® 2.0 Plus kit

The SuperVision® 2.0 Plus kit includes the SuperVision® 2.0 Control Module, which enables the connection of both digital and analogue machines as well as heating mats for remote control and monitoring. You also receive equipment for measuring in materials such as wood, as well as sensors for RH measurement with dynamic airflow control.

SuperVision Pluskit_720x568
SuperVision Pluskit_720x568

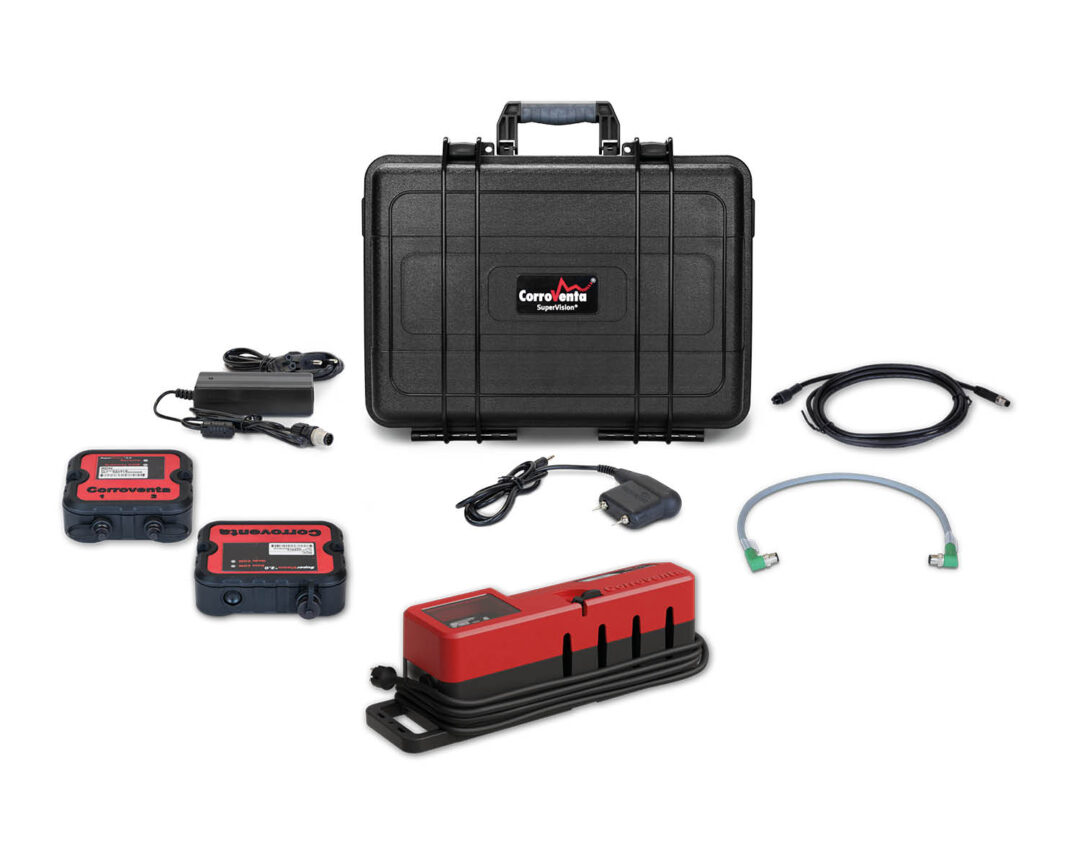

Content SuperVision® 2.0 Plus kit

SuperVision® 2.0 Gateway 1
SuperVision® 2.0 Sensor nodes incl. battery 2
SuperVision® 2.0 RHT Sensor 4
System cabel ES, 0,5 m 1
WME Heavy Duty Moisture probe 1
SuperVision® 2.0 Power adapter 1
SuperVision® 2.0 Control Module 1
SuperVision® 2.0 Transport case 1
Number of items 12
Article number 1006813

Optional accessories

Rubber seal for measuring tube, 10 pcs 1006435
Long insulated probes – 14” (350 mm) 9911152
SuperVision® 2.0 Power adapter 1003720
SuperVision® 2.0 RHT Sensor, 10 pcs 1006433
SuperVision® 2.0 HP RHT Sensor, 5 pcs 1006436

Technical data SuperVision® 2.0 Control Module

Supply voltage 230 VAC / 50 Hz
MID-certified energy meter Yes
Max allowed current 16 A
RCD built in (Residual Current Device) Yes
RCD trip current 30 mA
Dimensions (L x W x H) 473 x 133 x 153 mm
Weight 2,65 kg
Power cord length 4 m
Article number 1006794

Product documentation

SuperVision 2.0_User manual_2508_EN
