Corroventa products

System H4 for bed bugs sanitation

Quick and effective bed bugs sanitation without the need for chemicals

System H4 for bed bugs sanitation

Bed bugs and pests are a growing problem worldwide. The more we travel, the greater the risk of these insects spreading. Our heat-based method of pest control is not only reliable and effective in terms of achieving the required result, but the entire system has also been designed to minimise energy consumption, while automation and remote-controlled features make it easier than ever to use.

The system is supplied complete with a H4 ES heater, with remote control through SuperVision®, sensors and an insulating tent with accompanying floor insulation and tent frame. The system has few components and is therefore simple to both set up and use. The insulating tent and its case have been designed to ensure maximum discretion, with hotel guests and neighbours in mind.

Contact Technical data Documentation

Some advantages of the bed bugs sanitation system H4 ES:

Free from chemicals.
Rapid sanitation thanks to the double boost effect and the well-insulated tent.
After Cooling: Once the process is complete, the fan continues to run for an additional hour in order to steadily reduce the temperature. This helps to protect furniture from the effects of a sudden change in temperature.
The heater is a member of the ES family and can be monitored at a distance with SuperVision®.
Low noise level.
User-friendly and discreet.
No risk of the problem spreading to other rooms.

Technical data

Process air	950 m3/h
Power consumption, primary heater	2 100 W
Power consumption, secondary heater	2 200 W
Noise level (3 m)	55 dBA
Connection	4 300 W
Weight	22 kg
Size (L x W x H)	497 x 320 x 533 mm
SYSTEM DETAILS
Heater H4 ES	22 kg
Insulating tent, incl. case	17 kg
	2400 x 2400 x 2200 mm
Folding frame	12 kg
	2500 x 2500 x 2200 mm
Floor insulation
Temperature sensors, qty. 4
SuperVision
Article number	103543

Product documentation

BedBugs_brochure_EN_211101_web.pdf H4ES_User-manual_201710_GB.pdf

Eff Bed bug sanitation system H4 ES is delivered with:

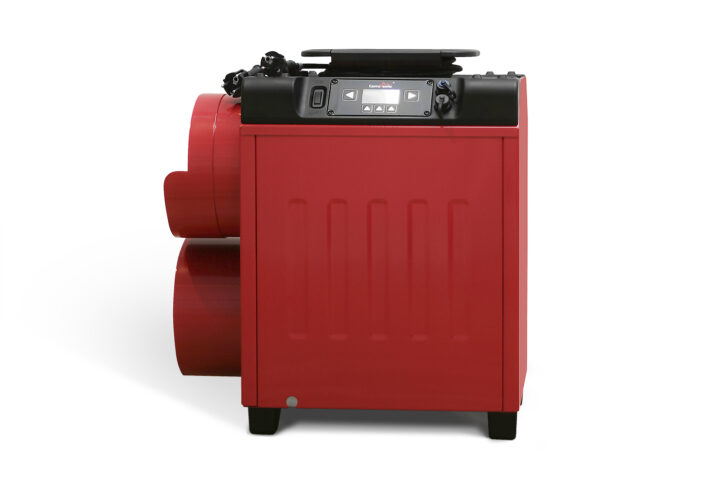

Heater H4 ES

The powerful heater with its boost function and the heavily insulated tent mean the system quickly reaches the required temperature. The heater also features an after-cooler that steadily reduces the temperature once the job is done, which helps to protect furniture.

Member of the ES family

The H4 ES heater features a clear display with a user-friendly interface. The required temperature and operating time can easily be set during the installation process, after which SuperVision® sends information by SMS or e-mail once the correct temperature has been reached or the allotted time has elapsed.

Temperature sensors

The four accompanying sensors are embedded into the thickest material possible inside the tent. The machine’s display shows the status of the sensor recording the lowest temperature. The process begins once all four sensors indicate the preset temperature, and after 1 or 2 hours the process is complete.

Well-insulated tent

The tent, which can easily hold all the furniture from a hotel room, can be set up quickly in the affected building. The excellent insulation means the process is quick, with minimal risk of the problem spreading to other rooms.

Folding frame

The tent frame, which is very sturdy and easy to erect, has two height settings to accommodate various ceiling heights. It is very easy to handle and weighs just 12 kg.

Insulating tent and case

The tent is made from a high-quality insulating material. This makes the pest control process quick, costeffective and energy efficient. The base of the tent is made of a particularly durable material, ensuring a long service life. The tent weighs just 17 kg and is supplied in a discreet case that can be carried in the hand or as a rucksack.

Remote monitoring and control with SuperVision®

With SuperVision® the process can be controlled, monitored and checked remotely using a computer, mobile phone or tablet. This enables considerably more assignments to be carried out simultaneously, while reducing the amount of travel engineers are required to do to monitor the process on site. SuperVision® provides total process control.

Unique benefits for optimal results

Member of the ES family

Thanks to the smart control system with integrated operating modes, as well as energy-efficient components, the ES machines consume less energy than traditional machines. They are energy optimised for both large and small jobs.

Remote control with SuperVision® 2.0

With SuperVision® the process can be controlled, monitored and checked remotely using a computer, mobile phone or tablet. This enables considerably more assignments to be carried out imultaneously, while reducing the amount of travel engineers are required to do to monitor the process on site.

Free from chemicals

The heating system tackles pests without the need for chemicals and is therefore the ideal solution in terms of health and the environment.

After-cooling

Once the process is complete, the fan continues to run for an additional hour in order to steadily reduce the temperature. This helps to protect furniture from the effects of a sudden change in temperature.

No risk of the problem spreading to other rooms

The use of a tent means the process is carried out in a closed area, which prevents pests spreading to other parts of the building.

Rapid bed bugs sanitation

Pest control using the H4 ES is more effective and quicker than with other pest control systems. The well-insulated tent enables the set temperature to be achieved more quickly and more energy efficiently. Pest control is quicker with heating systems than with traditional cooling systems.

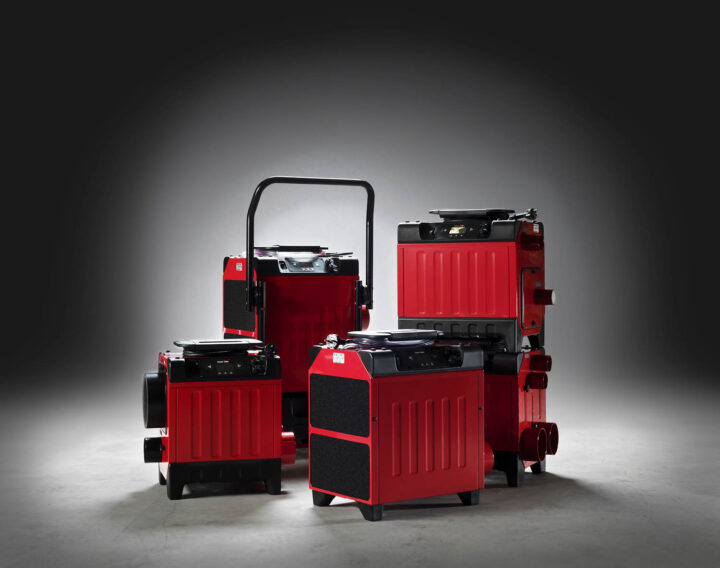

The ES family

ES is the most intelligent, flexible, compact and energy efficient product line that we have ever produced. At the same time, it is more powerful than any of our previous product series. ES stands for Energy Saving, which has been the aim throughout the development of our new product family. Not just when it comes to operation, but during all phases, not least with logistics and the interaction with the user.
