Condensing dryer K5 ES HP PX

The largest dehumidifier in the ES series, which is very compact and efficient relative to its size

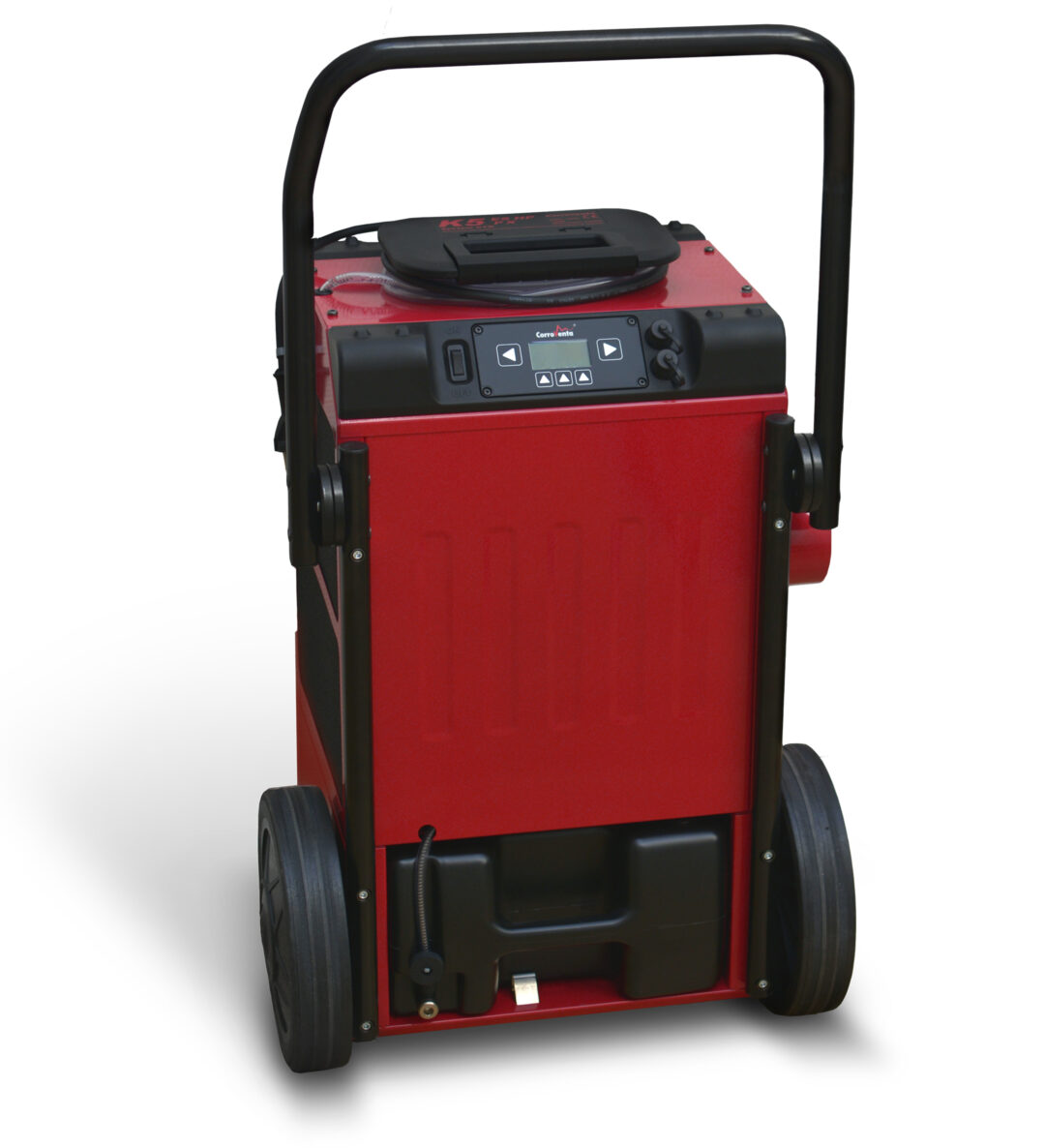

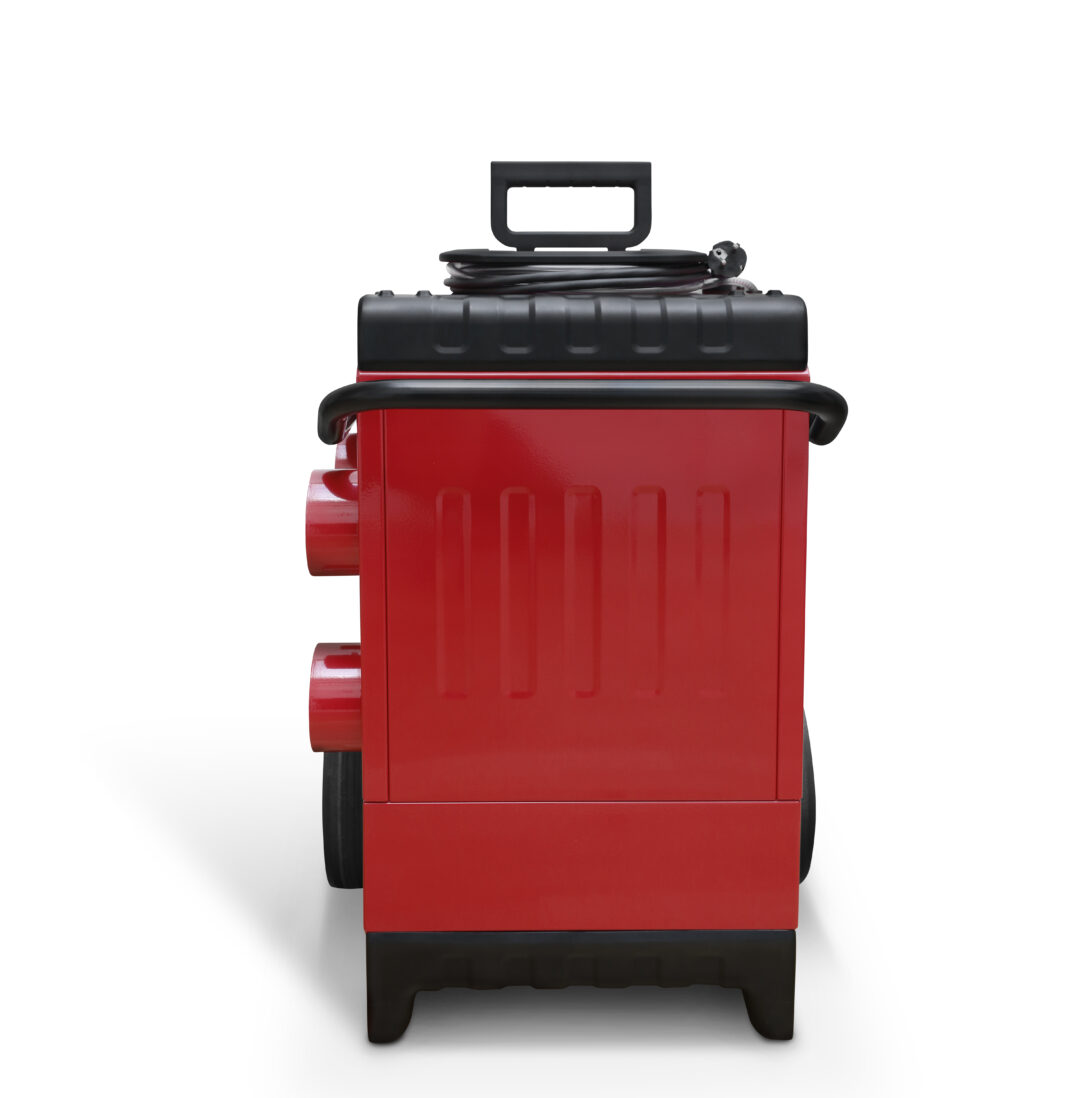

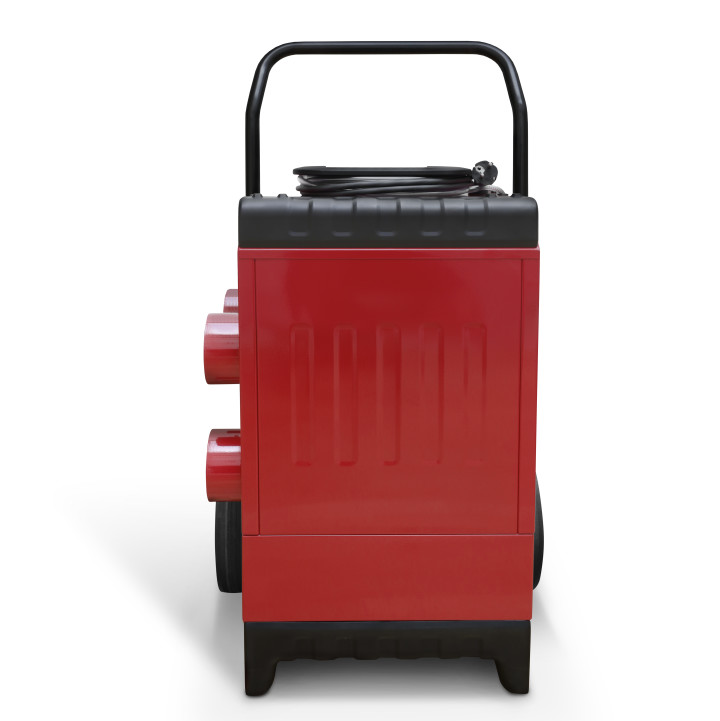

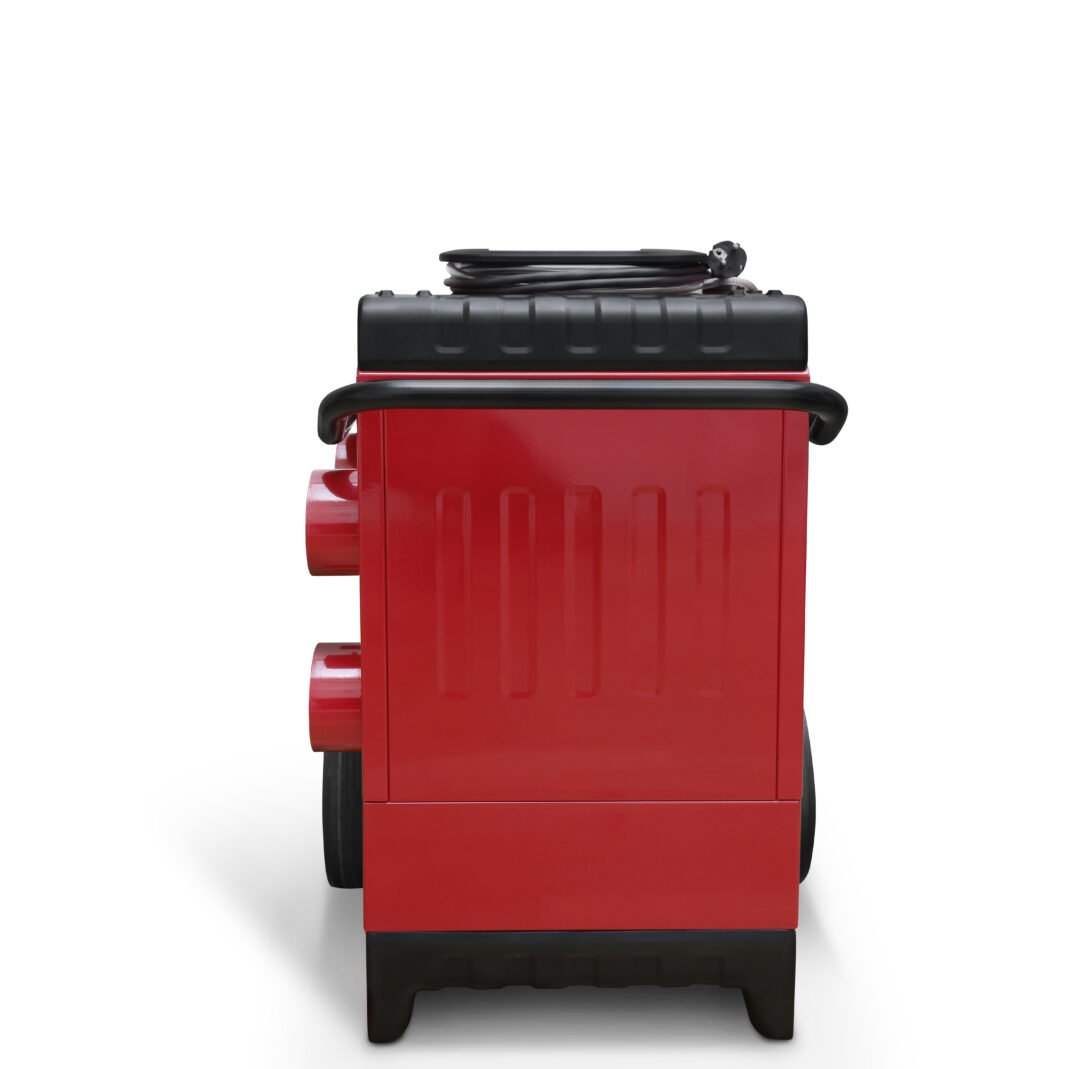

Condensing dryer K5 ES HP PX

The largest condensing dryer in the ES series, and the world’s most compact and efficient condensing drying in relation to its size. K5 ES HP PX has a capacity of up to 45 l/day and an air volume of 500 m3/h.

Contact Technical data Documentation

Member of the ES family

As a member of the ES family, condensing dryer K5 ES HP PX has a lot of integrated operating and control modes, which allows the drying effect to be optimised for the relevant dehumidifying assignment, at the same time as the machine retains a lower energy consumption than traditional condensing dryers. The condensing dryer is extremely quiet, which is a great advantage when used in residential environments for example.

Condensing dryer K5 ES HP PX can be used in combination with all other ES machines and is prepared so that it can be monitored remotely with SuperVision®.

K5 ES HP PX is eqipped with:

Extra powerful fan for efficient dry air distribution.
Additional heater for use in unheated environments.
Both pump and bucket for flexible use.

Technical data

Process air	500 m3/h
Max Capacity	45 l/day
Capacity 30°C / 80% RH	36 l/day
Capacity 20°C / 60% RH	18 l/day
Dry air distribution	3 x Ø100 mm
Operating range, RH%	30-100%
Operating range, °C	+3 till +38°C
Noise level dB (A) (3 m) high speed	53 dB (A)
Noise level dB (A) (3 m) low speed	48 dB (A)
Power consumption	500 W
Power consumption incl. extra heater	1700 W
Rated power at 20°C / 60% RH	500 W
Additional heater	1200 W
Refrigerant	R290
Power supply	230V / 50Hz
Weight	39,5 kg
Size (L x B x H)	520 x 445 x 710 mm
Article number	1004378

Product Documentation

K5-ES-HP-PX_User-manual_200427_ENG.pdf Condensing-dryer_Brochure_211102_ENG-web.pdf ES_brochure_EN_211101_web.pdf

Unique advantages with efficient results

Compatible with SuperVision®2.0

SuperVision® is used to control and monitor the drying process via computer, mobile phone or tablet. Each SuperVision® module can monitor up to eight ES machines and the drying process is controlled remotely, quickly and easily.

The machines communicate with each other

The ES machines have an intelligent integrated control system to achieve optimised performance and collaboration between turbines, dehumidifiers and water separators.

Maximum capacity in the smallest size

The ES machines are more powerful than any other product we have ever produced. Despite their compact appearance, our condensing dryers can supply more water than traditional condensing dryers twice their size.

ES - An energy efficient product family

Thanks to the smart control system with integrated operating modes, as well as energy efficient components, the ES machines consume less energy than traditional machines. They are energy optimised for both big and small assignments.

Optimised drying time

Because the drying result can be optimised at the time of installation, the machine works more efficiently, and the assignment will be completed in less time.

Silent mode

The ES machines work extremely quietly, and even have a silent mode which can be set at night. This is a huge advantage when the machines are used in residential environments, for example.

Remote controlled monitoring with SuperVision®

All ES-machines are compatible with SuperVision®, which is Corroventa’s latest innovation and a revolutionary system for the industry.
SuperVision® is used to control and monitor the drying process remotely via computer, mobile or tablet. Travelling is reduced because drying can be monitored remotely. Less travel time means more working time, without making the working day longer. This makes you more time efficient, as well as more environmentally-friendly.

SuperVision® is the best solution for drying results, overall economy and the environment.

The ES family

ES is the most intelligent, flexible, compact and energy efficient product line that we have ever produced. At the same time, it is more powerful than any of our previous product series. ES stands for Energy Saving, which has been the aim throughout the development of our new product family. Not just when it comes to operation, but during all phases, not least with logistics and the interaction with the user.
