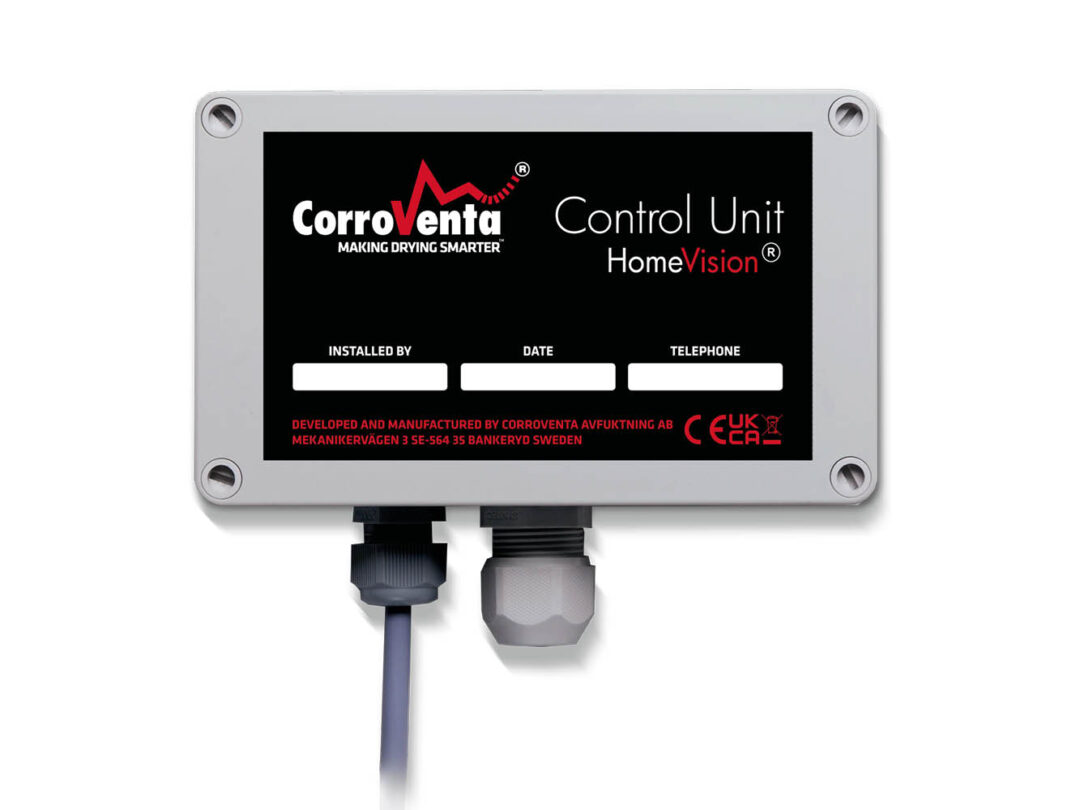

Control system HomeVision Pro

The HomeVision control system is used to achieve controlled dehumidification in crawl spaces

Control system HomeVision Pro

The HomeVision control system is used to achieve controlled dehumidification in crawl spaces. Control, regulation and monitoring of the crawl space installation occurs via a hygrostat connected to the dehumidifier in the space and a wireless control panel in the living area.

The control panel displays the prevailing temperature and humidity in the crawl space, the values that come from the hygrostat. The control panel also displays the operating status and permits the user to change settings if required. Prevailing temperature and humidity and the settings are saved in a log file in a USB memory which makes it possible to follow up the installation. The user is alerted to any operational interruptions through integrated alarm functions and the system also automatically gives a reminder that the annual service is due, all to ensure that function is maintained and that damage to the building is avoided.

HomeVision-Control-Panel
HomeVision_Hygrostat
HomeVision-Control-Panel
HomeVision_Hygrostat

Technical data

% RH setpoint
Δ% RH hysteresis upper
Δ% RH hysteresis lower
Δ% RH alarm level
Continuous fan operation, or fan only when dehumidifying
Control by mold Index
Reset to factory settings
Information on display & log file
Displaying the current RH
Display of current temperature
Display fan status On or Off
Display dehumidification On or Off
Display radio signal level
Graphic presentation runtime past 12 months
Graphic presentation of average temperature last 12 months
Graphic presentation of mean% RH 12 months
Error messages
CSV log file on USB stick
