Adsorption dehumidifiers IA2 ES F

IA2 ES F is a powerful and energy-efficient desiccant dehumidifier equipped with two separate airflows.

Dehumidifier for industrial applications

Flexible and powerful with extended service life

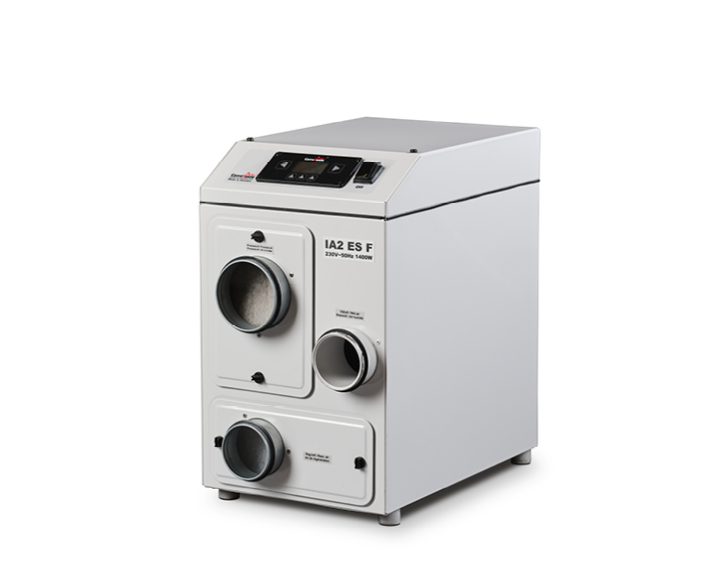

The IA2 ES F is a powerful and energy efficient adsorption dehumidifier that is designed with two separate air flows. This flexible dehumidifier has been developed to control the humidity of fixed installations, such as dry stores, industrial premises or other applications.

IA2-ES-F_720x568_front
IA2-ES-F_720x568_display
IA2-ES-F_720x568_open-hatch
IA2-ES-F_720x568_filter1
IA2-ES-F_720x568_extern
IA2-ES-F_720x568_details2
IA2-ES-F_720x568_details1
IA2-ES-F_720x568_back
IA2-ES-F_720x568_front
IA2-ES-F_720x568_display
IA2-ES-F_720x568_open-hatch
IA2-ES-F_720x568_filter1
IA2-ES-F_720x568_extern
IA2-ES-F_720x568_details2
IA2-ES-F_720x568_details1
IA2-ES-F_720x568_back

Flexible design with separate air flows

IA2 ES F is a four-hole type adsorption dehumidifier, which means that it has two fans and two separated air flows, providing flexibility to create different pressure conditions in the areas to be controlled for best performance and to meet requirements such as negative pressure, zero pressure and over pressure.

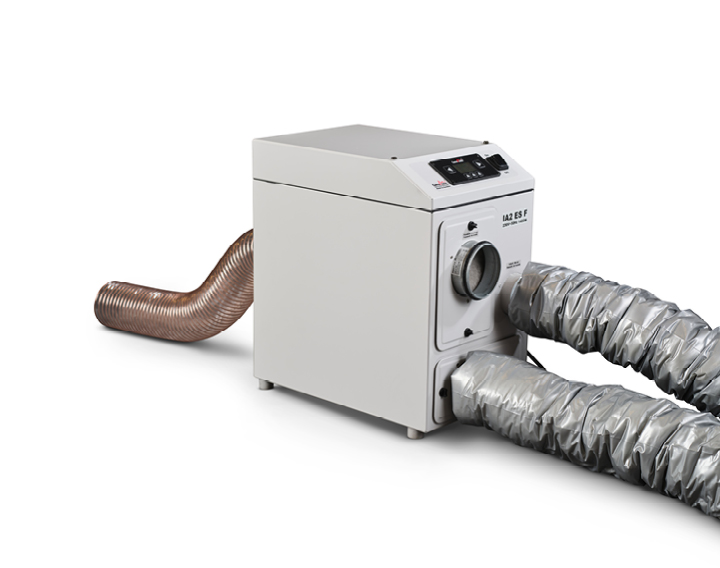

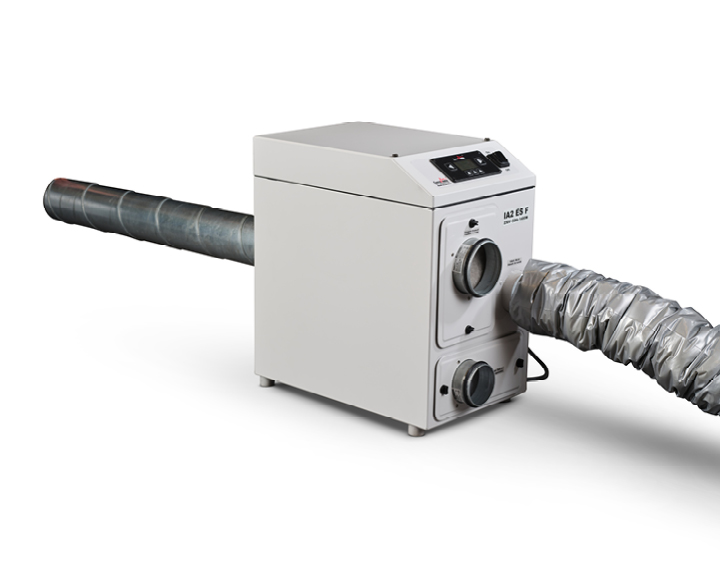

The unit is easily positioned and mountable via multiple connection options, providing maximum flexibility for air flow and can be located within or outside the treatment areas.

Optimise the dehumidifier’s operation

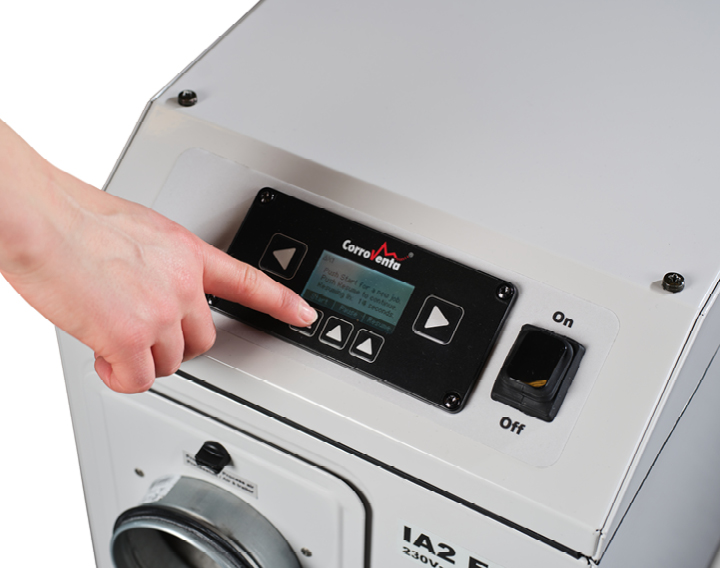

The ES-Functionality on the IA2 ES F enables the user to save time, money, energy and the environment by optimising the dehumidifier’s set-up, and to control the desired Relative humidity (RH), dewpoint temperature or moisture content (g/kg).

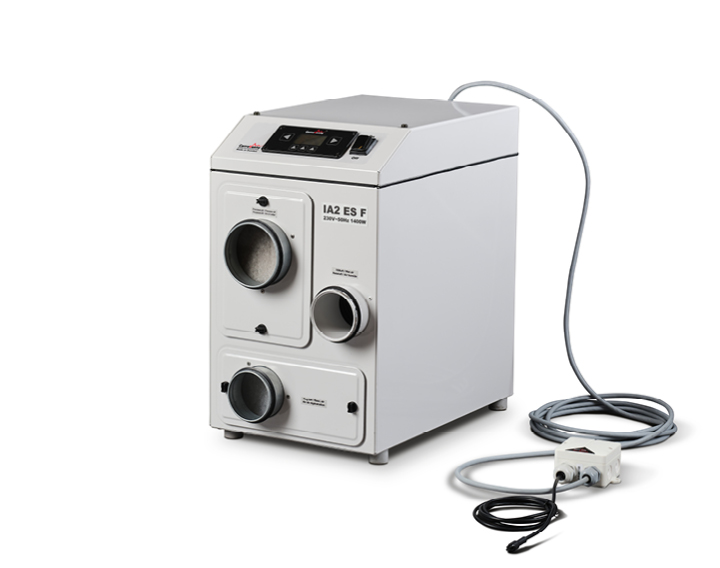

The IA2 ES F is compatible with Digital Gateway for connection to building systems, alternatively to Corroventa’s system SuperVision® 2.0 which is used to control, measure and monitor dehumidification remotely. This gives the dehumidifier longer service life and reduces running costs for the building owner because operational reliability and energy consumption can be minimized.

*ES stands for Energy Saving. To optimise the drying effect, all machines in the ES series can cooperate with each other through SuperVision® 2.0.

Efficient service and maintenance

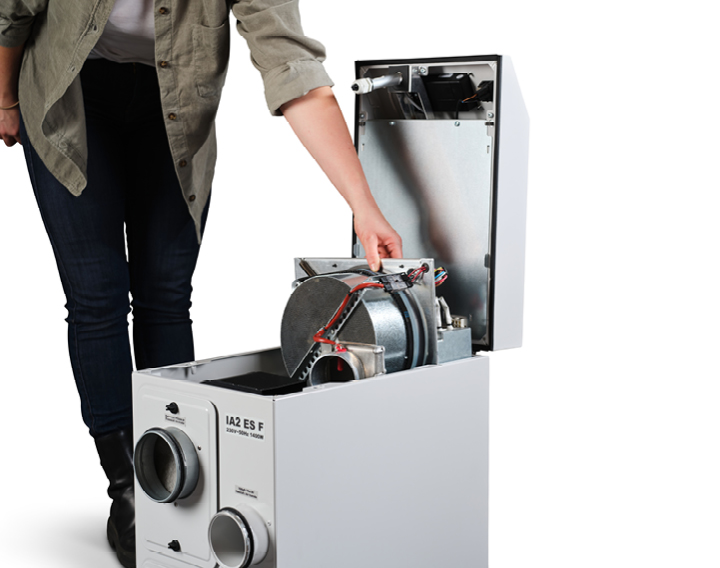

All Corroventa products are user-friendly and simple to maintain and service and the IA2 ES F is designed and manufactured to meet this criteria with a easy access service hatch that facilitates access to the serviceable components, allowing servicing to be carried out in situ, thus saving the user/engineer time and inconvenience.

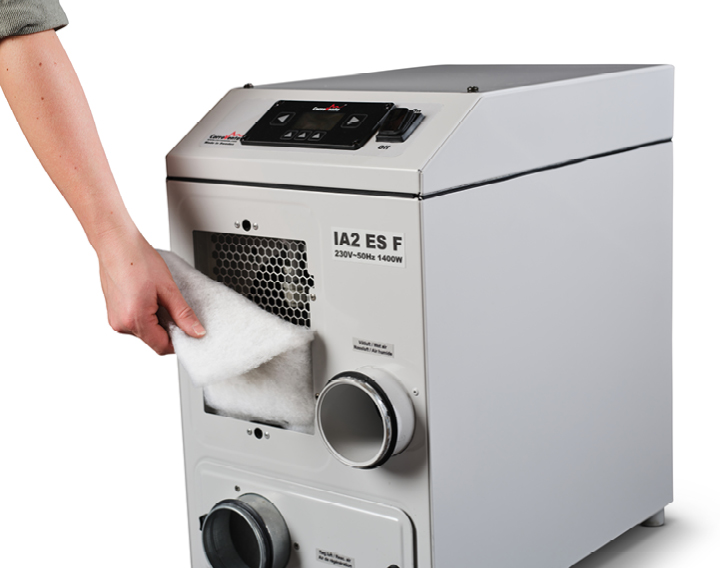

The filter are easily changes via an easy to access hatch, without using tools.

Advantages of the IA2 ES F:

  • Separated air flows gives flexibility to create different pressure conditions.
  • Maintenance and servicing can be carried out on site.
  • The ES functionality gives the user the option of optimising operation for each installation.
  • The overheat protection trips in the event of overheating.

Technical data

Capacity 20°C, 60% RH, l/day 16,8
ΔX-mode, 20°C, 60% RH, at 110/50*, g/kg 4,4
Nominal dry air flow rate, m3/h 170
Available static pressure, dry air flow, PA 200
Maximum dry air flow rate, m3/h 250
Nominal wet air flow rate, m3/h 50
Available static pressure, wet air flow rate, PA 150
Maximum wet air flow rate, m3/h 80
Heat output, W 1200
Power consumption, W 1400
Process air connector, mm Ø 100
Dry air connector, mm Ø 100
Wet air connector, mm Ø 80
Regeneration connector, mm Ø 80
Noise level (3 m) dB(A)** 45
Integrated RHT sensor Ja
Temperature range -20 – 40°C
Weight, kg 25,6
Size (L x W x H) mm 531x300x507
Article number 1005485
*Dry air/wet airflow
**Varies depending on installation
