Combi machine CTR K150XT

Patented machine with dehumidifier and turbine in the same unit

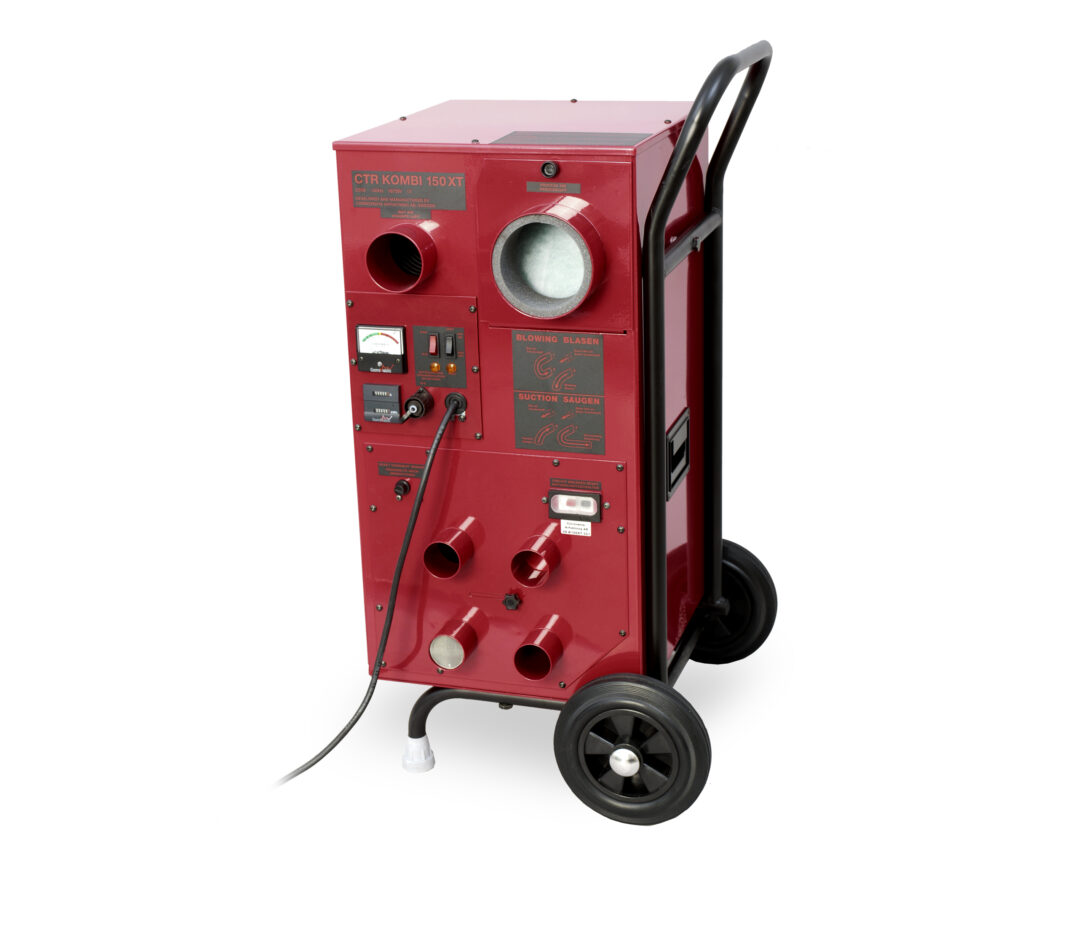

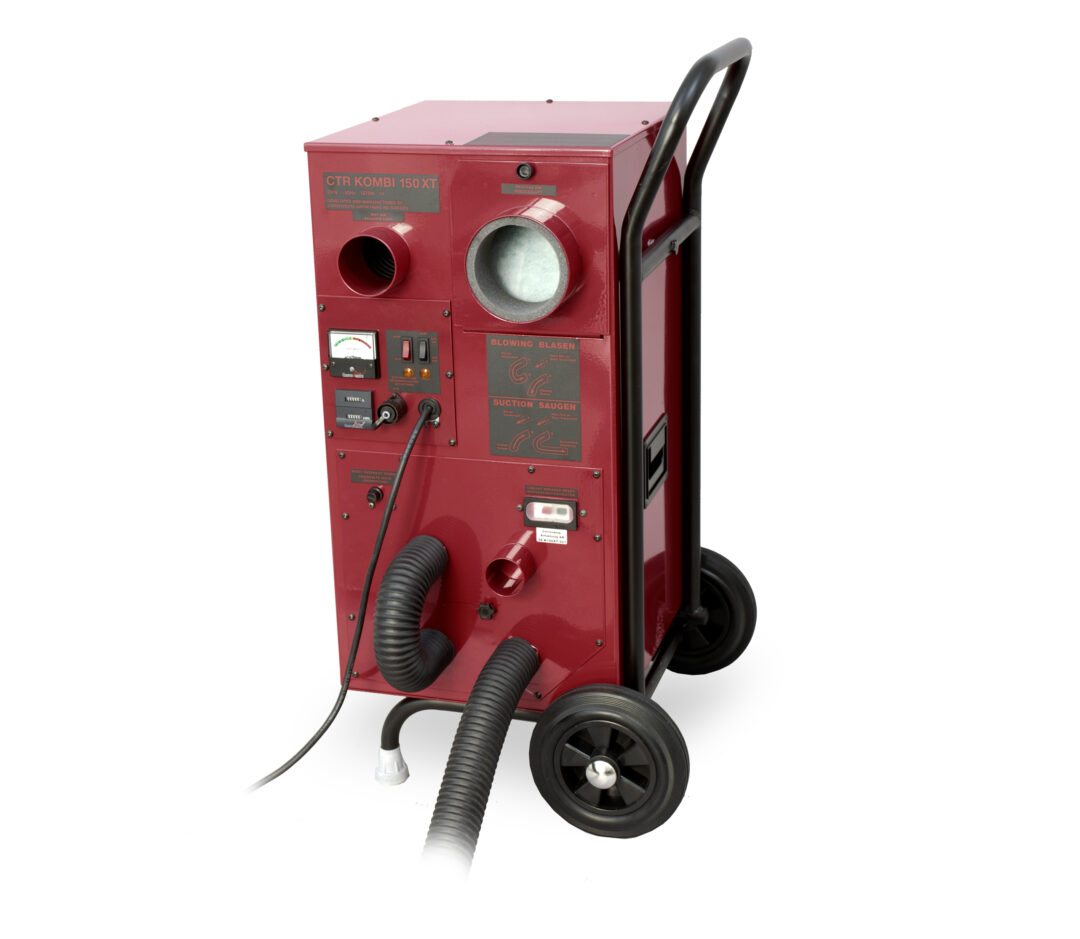

Combi machine CTR K150XT

Patented machine with dehumidifier and turbine in the same unit, which makes it very easy to change between suction and pressure drying of a layered construction.

CTR K150XT can be used when drying layered constructions of up to 40 m2, depending on material. The machine has an integrated Corromatic flow meter that shows the airflow through the machine.

CTR-K150XT_2
CTR-K150XT_1
CTR-K150XT_3
CTR-K150XT_2
CTR-K150XT_1
CTR-K150XT_3

Some advantages of CTR K150XT:

  • Quiet.
  • Easy to install, fast and safe.
  • Equipped with Corromatic Flow meter.

Technical data

Capacity +20°C, 40% RH 35 l/day*
Dry air volume 150 m3/h
Pressure 260 mbar
Power supply 230 V / 50 Hz
Power consumption 1600 W
Noise level (3 m) 44-49 dB
Weight 49 kg
Size (L x W x H) 550 x 470 x 930 mm
Article number 00841
*Depending on the installation

 Accessories

Additional items
Hygrostat

Humidistat HR1-5

Humidistat HR1-5 fits all Corroventa’s normal dryers. Used during drying when the conditions are considered sensitive or particularly critical.

Slangsystem_C25_20201202_600x400

Hose system C25

Flexible and user friendly for pressure or suction drying.

Slangsystem-16-720×422

Hose system C16

Flexible and user friendly for pressure or suction drying.

Slang-9910721_web

Hose Ø51 mm

Hose Ø 51 mm for distribution of air and liquid.

Ljudda¦êmpare-Silencer

Silencer

Effective noise damping. Large silencing of blowing noise during pressure or suction drying with the turbine or combi machine.

Corrofilter-Inline-gra¦è

Corrofilter inline

Protects the machine from dirt particles and eliminates contaminants in the wet air discharge to the environment during suction drying.

Utbytesfilter 9920184

Replacement filter 9920184

Replacement filter for: Adsorption dehumidifier CTR 150XT, Adsorption dehumidifier CTR 300xt...

Flexifilter-HEPA-H13-front

Flexifilter Hepa H13

A compact and lightweight filter unit for purifying large volumes of air where up to 6 turbine units can be connected.
