The innovative A15 high performance adsorption dehumidifier is designed specifically to provide powerful and quiet operation with minimal energy consumption.
Powerful and energy efficient adsorption dehumidifier. Designed and manufactured in Sweden.

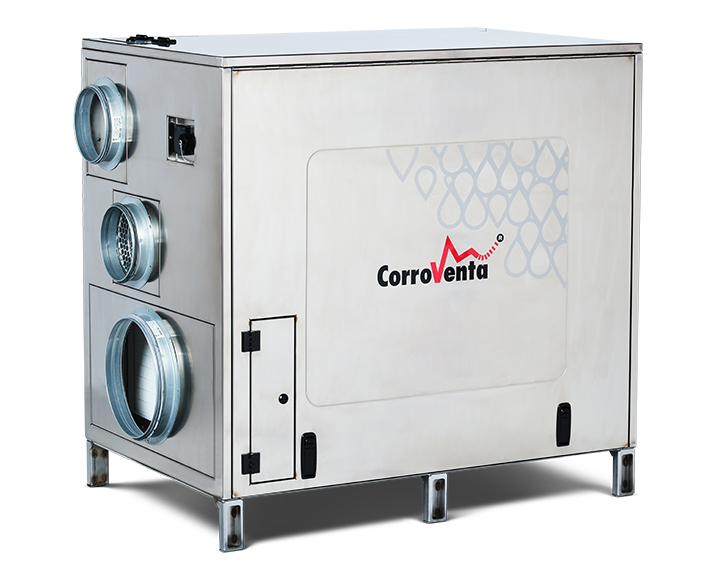

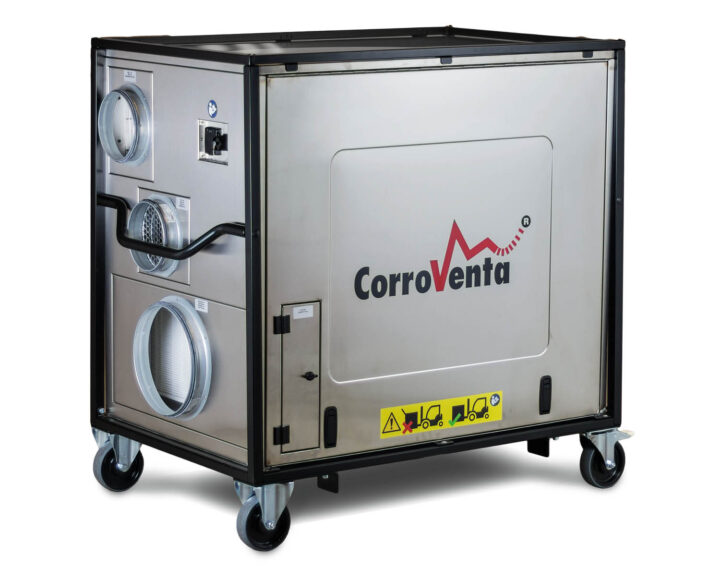

The innovative A15 high performance adsorption dehumidifier is designed specifically to provide powerful and quiet operation with minimal energy consumption. It can be utilized for numerous operations such as construction dehumidification, Water Damage Restoration (WDR) and air handling, control and monitoring, via either fixed or mobile installations. The A15 is designed to be hard working and robust with its stainless-steel construction, optional steel wheeled cage for ease of manoeuvrability and a capacity of 190 l/day and a dry air flow rate of 1500 m3/hr. A15 is available for both mobile and fixed installations.
Capacity l/day
Dry air flow rate m3/h
The A15 is a four-hole machine with airflow for regeneration and purge zone. The separate airflow allows for different pressure conditions to be created to control air movement in the spaces connected to the dehumidifier. The purge zone increases energy efficiency.

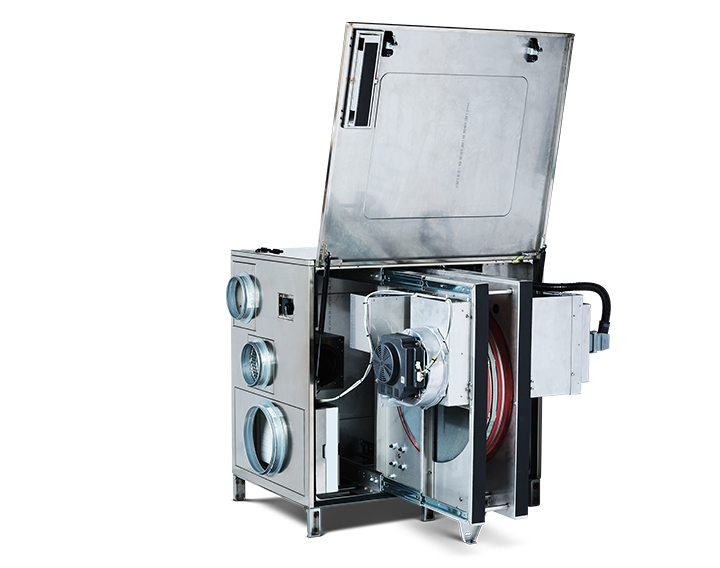

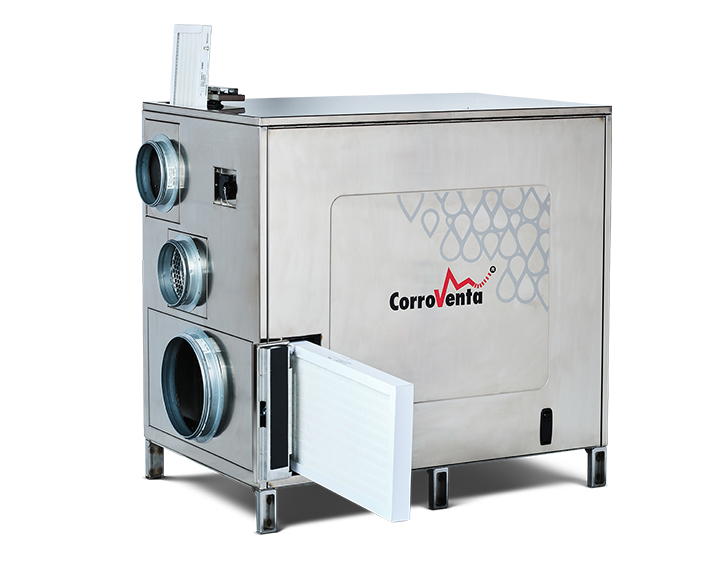

For ease of maintenance the A15 has a unique pull-out service cassette that allows the main operational components to be released from within on slider rails for simplified access for servicing, saving the engineer time and trouble. Additionally, the filters can be replaced quickly and easily through separate hatches, so that ducting does not have to be dismantled and refitted to saving operation time and inconvenience and also has replacement warning systems to advise when these require replacement.
The A15 is equipped with all Corroventa ES (Energy Saving) features, so that the dehumidification can be optimised for each installation and is compatible with SuperVision® 2.0, which can be used to control, measure and monitor the operation remotely from a computer, tablet or mobile phone. This provides superior control and unique opportunities to optimise dehumidification or air managing project individually and provide auditable records and reports.
Adsorption dehumidifier

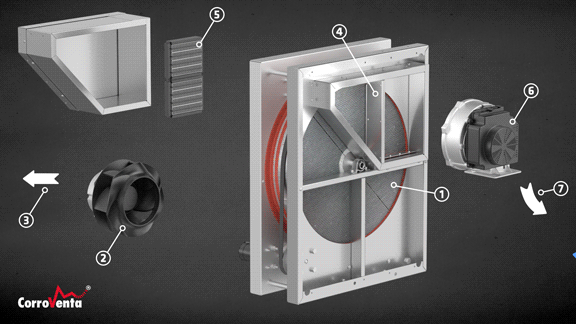

The process air is drawn into the machine and passes through the rotor (1) where it is dehumidified. The resulting dry air is further drawn into the process air fan (2) and expelled from the machine via dry air connector (3).
In parallel with dehumidification, regeneration air is drawn into the machine via a separate connector and first passes the rotor in the purge sector (4). The rotor located here has just been regenerated and is still hot, as a result, the regeneration air is preheated by the rotor and the recovered energy contributes to the efficiency of the machine.
The preheated air then continues through the heaters (5) and back through the rotor to regenerate it and expel the adsorbed moisture. The resulting wet air is further drawn into the regeneration fan (6) and then forced out of the machine via the wet air connector (7).
SuperVision® 2.0 is a unique control and monitoring system that is compatible with the 5G network, providing the ability to have total control over drying processes anywhere, anytime.
