Technical data
| Air volume | Up to 300 m3/h |
| Pressure | Up to 260 mbar |
| Noise level at full power | 48 dB (A) |
| Power supply | 230V / 50 Hz |
| Weight | 17,5 kg |
| Size (L x W x H) | 430 x 295 x 430 mm |
| Article number | 1001846 |
Products
Turbine T4 ES
The ES series' largest turbine with an airflow of up to 300 m3/h is designed for optimized performance in both large and small dehumidification tasks
Turbine T4 ES
The ES family’s largest turbine, which is designed for both small and large drying jobs, with an air volume of 300 m3/h.
The turbine’s air volume/-pressure can be adjusted based on the drying assignment’s size and demand. When the temperature rises, the output is regulated down. This is done so that the machine can continue to work even at extreme load and not stop and require manual resetting like several other machines do on the market.
Member of the ES family

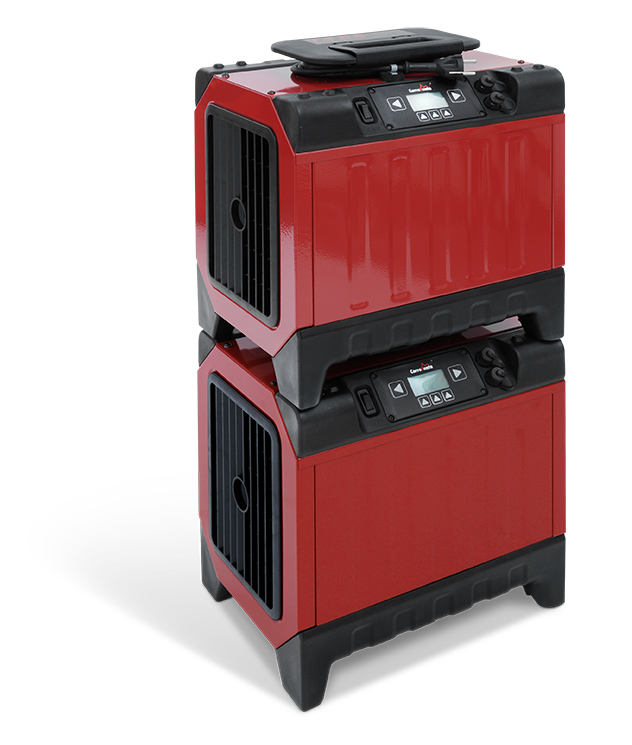

As a member of the ES family, the T4 ES has a lot of integrated operating and control modes, which allows the drying effect to be optimised for the relevant drying assignment, at the same time as the machine retains a lower energy consumption than traditional turbines. The machine is robust, stackable, compact and ergonomically designed, which facilitates the work for the moisture control technician and makes it easy to move between dehumidifying assignments. It is extremely quiet, which is a great advantage when used in residential environments for example.
Turbine T4 ES works with all other ES machines and is prepared so that it can be monitored remotely with SuperVision®.
Unique advantages with efficient results
Compatible with SuperVision®2.0
SuperVision® is used to control and monitor the drying process via computer, mobile phone or tablet. Each SuperVision® module can monitor up to eight ES machines and the drying process is controlled remotely, quickly and easily.
The machines communicate with each other
The ES machines have an intelligent integrated control system to achieve optimised performance and collaboration between turbines, dehumidifiers and water separators.
Maximum capacity in the smallest size
The ES machines are more powerful than any other product we have ever produced. Despite their compact appearance, our condensing dryers can supply more water than traditional condensing dryers twice their size.
ES - An energy efficient product family
Thanks to the smart control system with integrated operating modes, as well as energy efficient components, the ES machines consume less energy than traditional machines. They are energy optimised for both big and small assignments.
Optimised drying time
Because the drying result can be optimised at the time of installation, the machine works more efficiently, and the assignment will be completed in less time.
Silent mode
The ES machines work extremely quietly, and even have a silent mode which can be set at night. This is a huge advantage when the machines are used in residential environments, for example.
Remote controlled monitoring with SuperVision®
All ES-machines are compatible with SuperVision®, which is Corroventa’s latest innovation and a revolutionary system for the industry.
SuperVision® is used to control and monitor the drying process remotely via computer, mobile or tablet. Travelling is reduced because drying can be monitored remotely. Less travel time means more working time, without making the working day longer. This makes you more time efficient, as well as more environmentally-friendly.
SuperVision® is the best solution for drying results, overall economy and the environment.
The ES family
ES is the most intelligent, flexible, compact and energy efficient product line that we have ever produced. At the same time, it is more powerful than any of our previous product series. ES stands for Energy Saving, which has been the aim throughout the development of our new product family. Not just when it comes to operation, but during all phases, not least with logistics and the interaction with the user.
Accessories
Additional items
Similiar products
Corrofilter inline
Protects the machine from dirt particles and eliminates contaminants in the wet air discharge to the environment during suction drying.
